High Safety Corrugated Box Stitcher Machine , Cardboard Box Machine
Product Details:
| Place of Origin: | CN |
| Brand Name: | Aomei |
| Certification: | ISO9001 |
| Model Number: | ad-201 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | 5 USD |
| Packaging Details: | wood |
| Delivery Time: | 20 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 50psc per month |
|
Detail Information |
|||
| Type: | Automatic Stitching Machine,Corrugated Box Stitching Machine/carton Packing Machine Prices | Voltage: | 220V/380V |
|---|---|---|---|
| Power: | 7.5kw,22KW,40-48.5kw | Dimension(l*w*h): | 600*790*1800mm,8000*700*2200mm,2800x2600x2500 |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas,Overseas Third-party Support Available | Automatic Grade: | Semi-Automatic |
| Condition: | New | Packaging Type: | Cartons |
| Application: | Machinery & Hardware | Driven Type: | Manual |
| Usage: | 2460 Carton Box Stitching Machine | Name: | Automatic Stitching Machine |
| Product Name: | Semi-automatic Corrugated Cardboard Carton Box Stitching Machine,Stitching Machine,Semi Carton Box Stapling Machine Corrugated Board Stitching Machine | Warranty: | 1 Year |
| Color: | Customized | Speed: | 275-330,60-150 Sheets/min |
| Function: | Stapling Box,For Carton Box Stitching | ||
| Highlight: | High Safety Corrugated Box Stitcher Machine,220V Cardboard Box Machine,380V Corrugated Box Stitcher Machine |
||
Product Description

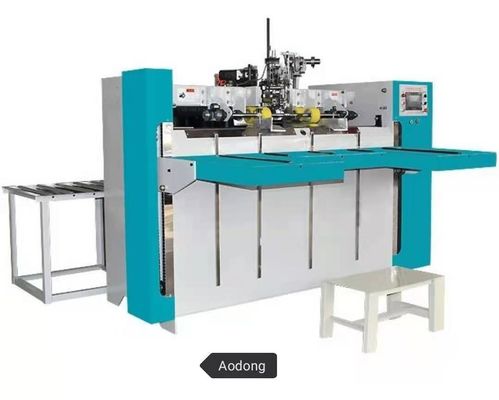

Carton Box Stitcher Semi Automatic Corrugated Box Stitching Machine
1 Machine Main Features
1 One minute quick order change. Servo system .
2 Easy operation, no training is necessary.
3 Single, double ,strength supplement stitching are available.
4 Automatic counter ejector.
5 Touch screen operate.
6 Nail can be up to: 100mm.
7 400 nails/minute.
8 Stitching whatever the carton have cover or not.
9 Nail span can set up directly in the touch screen.
10 Stitching whether the carton has carter or not
11 Paper feeding automatic counting ,bundled into a bunch of sending
12 The paper pressing wheel gap electric adjustment
13 The working table lifting effective height:900mm
2 Machine main parameter
| Machine speed | 400 nails /min |
| Number of stitches | 1- 99 nails |
| Stitching Pitch Range | 20 - 200 mm |
| Max feeder size | 2460 mm |
| Min feeder size | 606 |
